LFS Series
A combination product that with light weight, ultra-flat. Using cross-roller bearing.

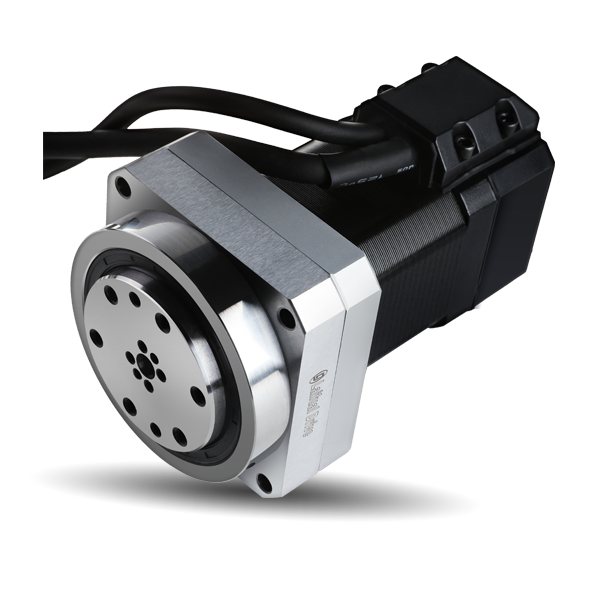

LFS Integrated series
Combined harmonic drive with the high-performance small motor, with the highest input characteristics under the same gear conditions.
| Model | Reduction ratio | Rated torque at 2000r/min input | Permissible peak torque at start and stop | Permissible maximum value for average load torque | Permissible maximum momentary torque | Permissible maximum input rotational speed(Grease) | Permissible average input rotational speed(Greaae) | Backlash | Desian life | ||||
| Nm | kgfm | Nm | kgfm | Nm | kgfm | Nm | kgfm | r/min | r/min | Arc Sec | Hour | ||
| 11 | 80 | 4.5 | 0.5 | 9.9 | 1.0 | 8.0 | 0.8 | 22.5 | 2.3 | 8500 | 3500 | ≤20 | 7000 |
| 100 | 5.0 | 0.5 | 11 | 1.1 | 8.9 | 0.9 | 25 | 2.5 | 7000 | ||||
| 14 | 50 | 5.4 | 0.55 | 18 | 1.8 | 6.9 | 0.7 | 35 | 3.6 | 8500 | 3500 | ≤20 | 10000 |
| 80 | 7.8 | 0.8 | 23 | 2.4 | 11 | 1.1 | 47 | 4.8 | 10000 | ||||
| 100 | 7.8 | 0.8 | 28 | 2.9 | 11 | 1.1 | 54 | 5.5 | 10000 | ||||
